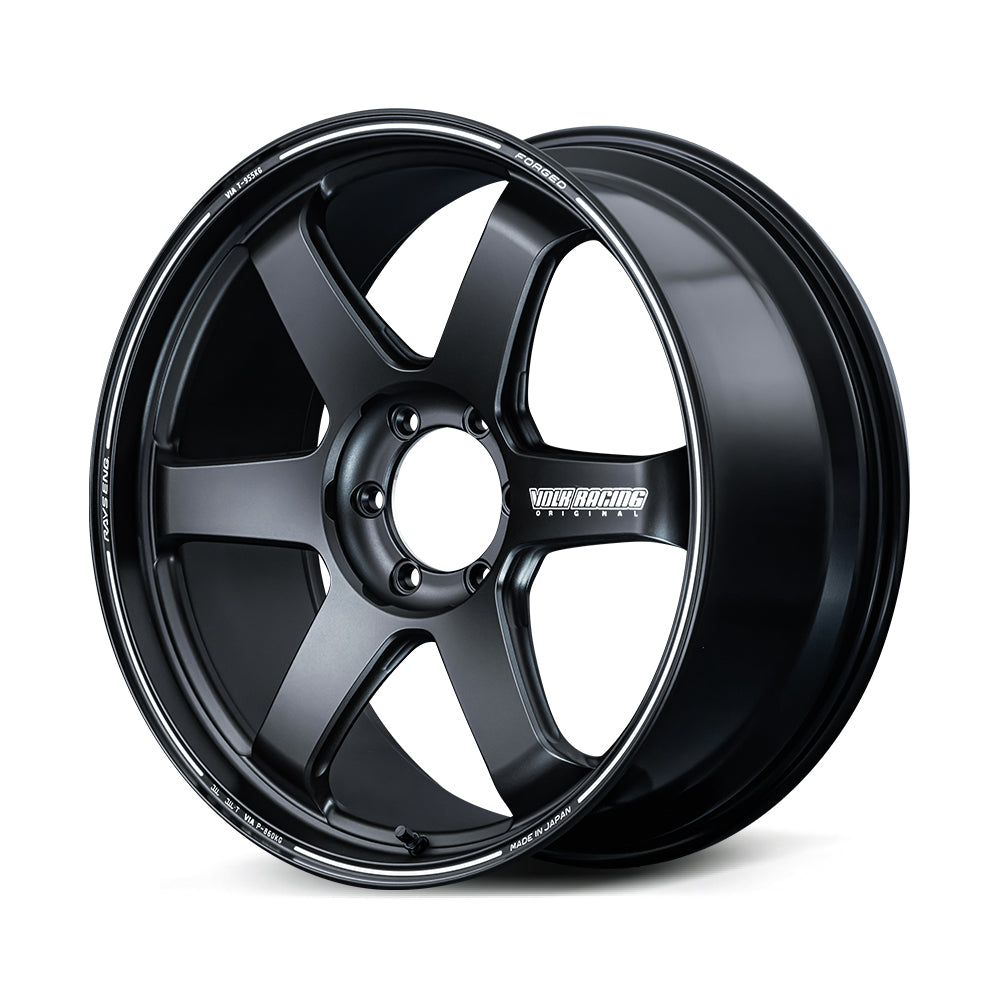

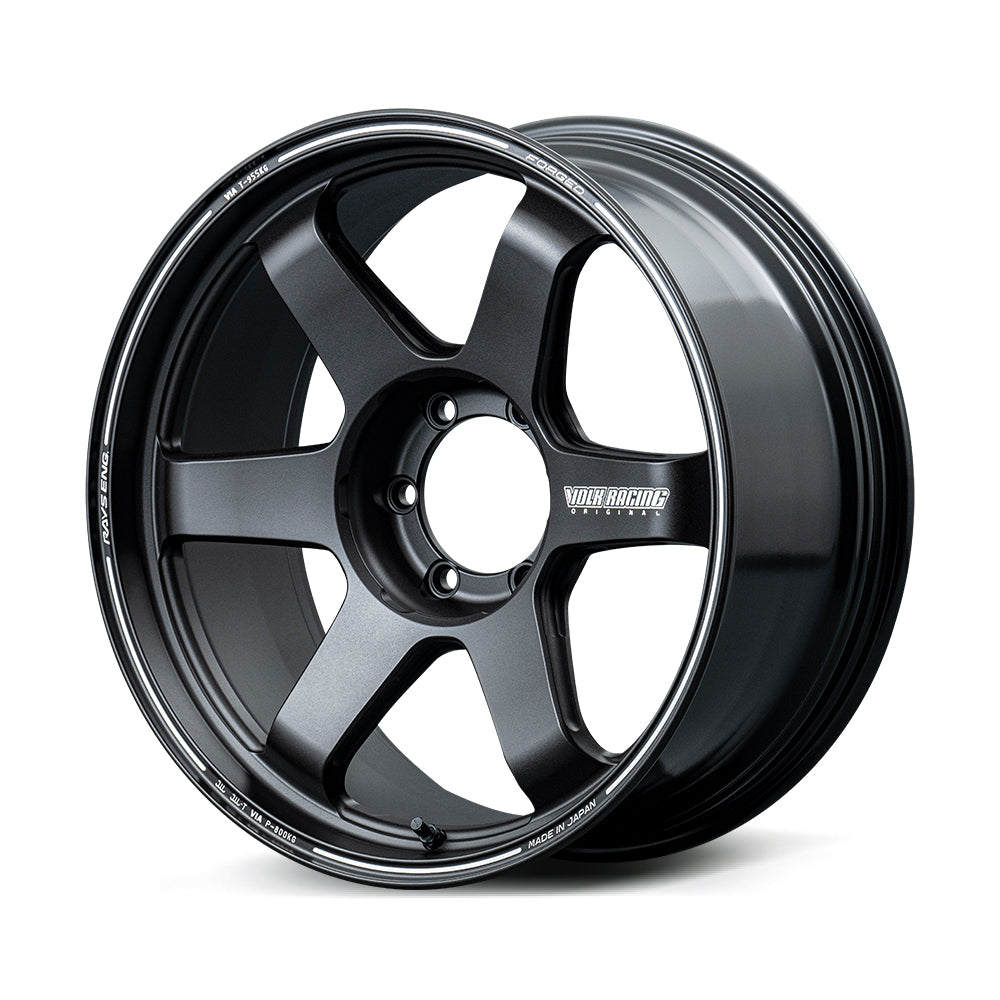

RAYS G025GC

The ultimate strength

A wheel with the unique characteristics of RAYS forged wheels, boasting absolute strength and rigidity, has been born to support the heaviest machines. VOLK RACING's design aesthetics are characterized by "purposeful lines" and "shapes with intent."
Not solely for design's sake, these wheels are created to possess both the necessary functionalities for street cars and stimulating forms. They feature awe-inspiring forms, VOLK RACING's distinctive details, and the emotional shapes unique to the G-Series, all of which captivate onlookers.
To elevate the design of the G025 and support the largest sizes, we made various modifications to its structure. The spoke's cross-sectional shape is wide, rugged, and sharp, accentuating its three-dimensional and edgy appearance.
Furthermore, by utilizing structural analysis technology, we significantly enlarged the weightless holes compared to the base model G025, while maintaining a minimum reduction in the side surface, thus achieving the ability to withstand the weight of the targeted vehicles with ease.

Spec

Color

Blast Black 2(BT)
Shining Light Metal/ Rim FDMC (SI)



A.M.T. Machining

In the undercut section of the well, RAYS' patented technology A.M.T. is used to engrave machined characters, and the simple font gives a calm and sophisticated impression of an adult.

Close

DISK design

For the size lineup, which was selected targeting various heavy vehicles, two different face designs are offered for FACE. We adopted face designs that suit each car.





weightless hole

The weightless hole, a distinctive feature in the center section, is evidence of the "Zero Series" that started from TE037. Taking into account the targeted vehicle weight and the design for larger diameters, we conducted structural analysis, significantly enlarging the weightless hole compared to the base model G025, while maintaining a minimum reduction in the side surface.

Close

Center Part

The center caps each adopt colors that match the wheel color. Additionally, by adding texture to the center cap's fitting section, it enhances the three-dimensional appearance, further expressing the design in a more mechanical way.

*Price is for each wheel, minimum order quantity 4pc*

Close

Size / Spec

SIZE :

ALL22 inch

P.C.D. :

ALL114.3120139.7130

SIZE	FACE	INSET	HOLE	P.C.D.	HUB BORE (φ)	DRILL (φ)	COLOR	PRICE	CALIPER CLEARANCE	LOAD (lbs)	CODE
22x9J	F 1	45	5	114.3	73.1	29-15	BT	2151	TOYOTA ALPHARD/VELLFIRE(AGH30W)	2,600	06872904595BT
22x9J	F 1	45	5	114.3	73.1	29-15	SI	2212	TOYOTA ALPHARD/VELLFIRE(AGH30W)	2,600	06872904595SI
22x9J	F 1	36	5	114.3	73.1	29-15	BT	2151	TOYOTA ALPHARD/VELLFIRE(AGH30W)	2,600	06872903695BT
22x9J	F 1	36	5	114.3	73.1	29-15	SI	2212	TOYOTA ALPHARD/VELLFIRE(AGH30W)	2,600	06872903695SI
22x9J	F 1	30	5	114.3	73.1	29-15	BT	2151	LEXUS RX450h(GYL25W)/RX350(GGL10W)*	2,600	06872903095BT
22x9J	F 1	30	5	114.3	73.1	29-15	SI	2212	LEXUS RX450h(GYL25W)/RX350(GGL10W)*	2,600	06872903095SI
22x9J	F 1	45	5	120	72.6	29-15	BT	2151	TOYOTA ALPHARD/VELLFIRE(40)	2,600	06872904521BT
22x9J	F 1	45	5	120	72.6	29-15	SI	2212	TOYOTA ALPHARD/VELLFIRE(40)	2,600	06872904521SI
22x9J	F 1	35	5	120	72.6	29-15	BT	2151	TOYOTA ALPHARD/VELLFIRE(40)*	2,600	06872903521BT
22x9J	F 1	35	5	120	72.6	29-15	SI	2212	TOYOTA ALPHARD/VELLFIRE(40)*	2,600	06872903521SI
22x9J	F 2	20	6	139.7	106.1	29-15	BT	2151		2,600	06872902014BT
22x9J	F 2	20	6	139.7	106.1	29-15	SI	2212		2,600	06872902014SI
22x9.5J	F 1	50	6	139.7	106.1	29-15	BT	2200		2,600	06872955014BT
22x9.5J	F 1	50	6	139.7	106.1	29-15	SI	2222		2,600	06872955014SI
22x10J	F 2	25	5	130	84.1	29-15	BT	2212	BENZ G63 AMG G-Class(W463)*	2,600	06872102548BT
22x10J	F 2	25	5	130	84.1	29-15	SI	2322	BENZ G63 AMG G-Class(W463)*	2,600	06872102548SI
22x10J	F 1	55	6	139.7	106.1	29-15	BT	2212		2,600	06872105514BT
22x10J	F 1	55	6	139.7	106.1	29-15	SI	2212		2,600	06872105514SI
